Custom Class 100-10000 Clean Booth For Pharmaceutical Product Packaging

A Clean Work Booth is a localized cleanroom system characterized by rapid construction and flexible configuration. Using an independent frame structure and high-efficiency filtration units, it performs multi-stage air purification in a designated area, creating a localized clean room space that meets Class 100 to Class 10000 requirements.

Clean Booth is critical in pharmaceutical and bioengineering industry. Pharmaceutical manufacturing should observe absolute GMP where contamination by microbes is averted all through, including formulation and filling that is to be finally packaged. A remarkably clean environment is also critical in medical device manufacturing equipment to enhance the safety of the products. In the lab, cell culture and genetic engineering work have high requirements on the environmental stability and cleanliness.

TECHNICAL SPECIFICATIONS

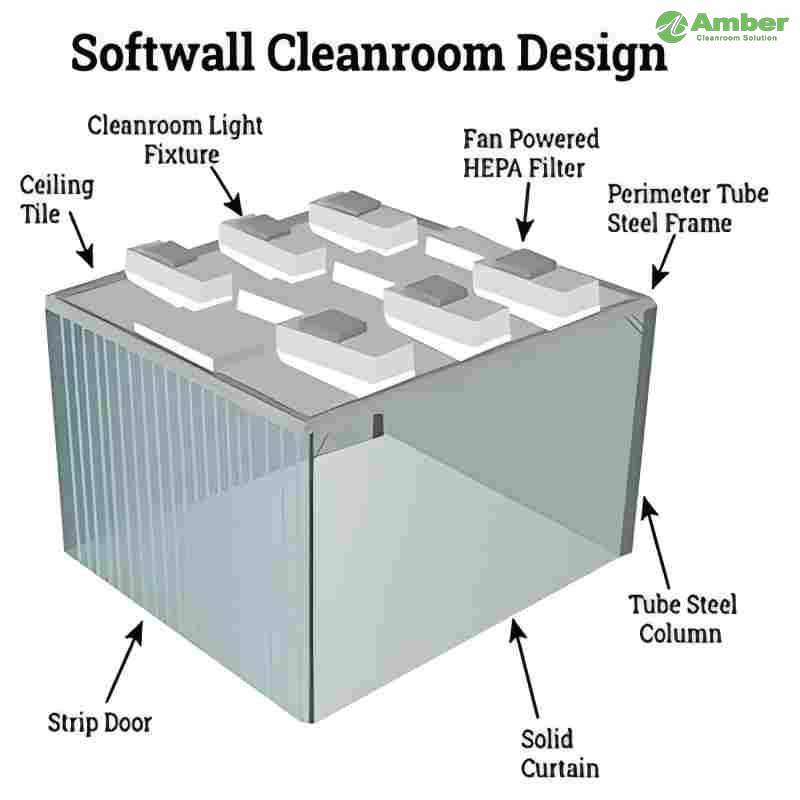

• Our Clean Room Booth is constructed from high-strength aluminum extrusions, with transparent acrylic glass encapsulating the top and front and back interiors. It features curtains on both sides, ensuring a clean environment while facilitating easy access. Equipped with four high-efficiency FFUs (1175×575×285mm, aluminum frame, unpartitioned HEPA filters measuring 1170×570×69mm), it boasts a rated power of 150–190W, a noise level of only 48–58dB (static test at 1.5 meters below the HEPA filters), and a peak vibration of less than 5μm, providing stable, low-turbulence clean airflow.

• Drawings measuring 2800×2200mm on each side, combined with a 2800×2200mm caster design at the bottom, facilitate mobility and flexible deployment. Internal lighting and an electrical box provide the necessary power and lighting for daily operations. Measuring 4980mm (width) × 3600mm (depth) × 2240mm (height), the booth provides an ideal clean environment for experiments, production, or precision operations.

• This Clean Work Booth combines flexibility with efficient purification performance, making it a reliable portable clean booth solution that provides a safe and stable environment for various clean operations.

FAQ

Q1: What is a Clean Room Booth?
A: A Clean Room Booth is a device that provides a localized clean environment. It is suitable for use in laboratories, precision manufacturing, electronics processing, and other locations requiring clean airflow.

Q2: What is the Clean Room Booth made of?
A: This product is made of high-strength aluminum profiles. The top and front and back interiors are enclosed in acrylic glass, and curtains are installed on both sides to ensure a stable structure and facilitate observation and operation.

Q3: Is the Clean Work Booth movable?
A: This device is equipped with Formica wheels at the bottom for easy movement between different work areas. Curtain doors on both sides also provide convenient entry and exit for operators.

Custom Class 100-10000 Clean Booth For Pharmaceutical Product Packaging Images
